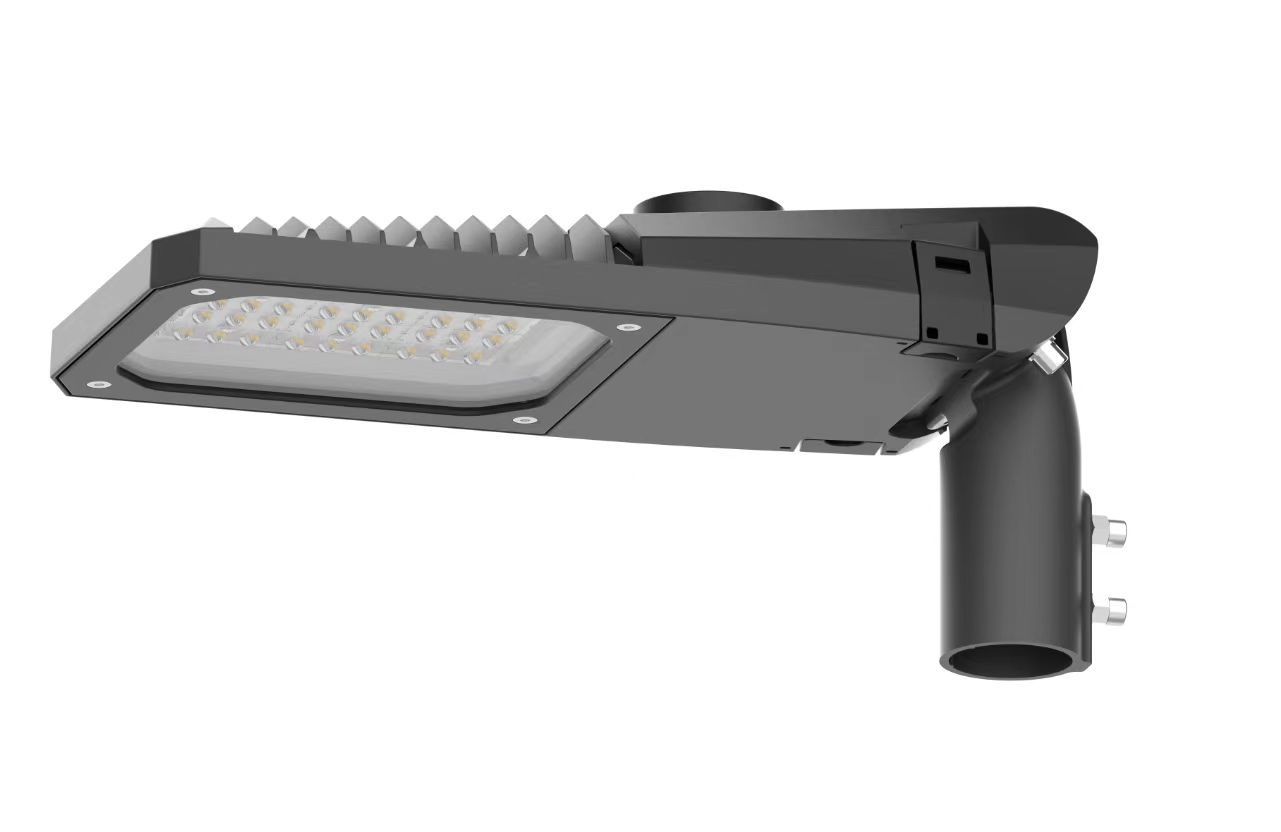

Horizontal and Vertical available adjustable angle-15°to+15° led street lighting.
The LED Street light housing manufacture from high pressure die-casting aluminum casing
| Código do modelo | Housing Size mm | Poder combinado | Lamp Post （mm) | Peso (Kg) | Accesorios |
| EK-LD13A | 492*183*97 | 30-50W | 60 | 2.4kg | Aluminum body tempered glass, Waterproof Rubber Ring，304 s/s screws, |
| EK-LD13B | 541*200*113 | 60-80W | 60 | 2.8kg | |
| EK-LD13C | 602*243*121 | 90-120W | 60 | 3.5kg | |
| EK-LD13D | 652*263*121 | 120-150W | 60 | 4.0kg | |
| EK-LD13E | 722*314*121 | 150-200W | 60 | 5.5kg | |
| EK-LD13F | 823*314*121 | 240-300W | 60 | 6.1kg | |
| Legend: Std = IP66 IK08 | |||||
| Housing Material ：Die-cast Aluminum + Armored Glass | |||||
| Temperatura de traballo -35 ℃ ~ 50 ℃ 20% ~ 90% HR | |||||
Características do produto
- O corpo de aluminio está feito de fundición a presión de aluminio ADC12, a superficie tratada con pintura en spray para evitar a corrosión e a persistencia da cor.
- Large area heatsinks fin design for fast theory in favor of the connection between cold and hot air, to keeping the good heat dissipation of lamps and increase the light whole life-time.
- Caixa do provedor de enerxía para manter a lámpada completa e unificada.
- Deseño de ventilación para evitar o po e evitar a auga estancada para lograr a luz de longa duración.
high-performance street lighting available in three sizes.
The LED Street lighting is manufactured from high pressure die-casting aluminum.
Led street light housing, Aluminum body street light
Shenzhen EKI Lighting Industrial Co.,Ltd. é o fabricante de carcasas de luz LED de fundición a presión de aluminio cos distintos deseños e tecnoloxías desenvolvidas.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED High bay Heatsink, LED Downlight Empty Casting and so on.
Características da carcasa da farola LED:
- Alta durabilidade
- Alta resistencia
- Últimos deseños dispoñibles
