5 years warranty 50w 80w 100w 150w 240w led street light, IP66 waterproof 3000k 6000k city led road lighting
Model Number : EK-LD2301
Nome do produto: corpo faro
Recommend the Watts: : 20w 60w 80w 100w 150w 200w 240w
Índice de impermeabilidade: IP66 IP67
Índice antisismo: IK08 IK09
Temperatura de traballo (℃): -20-60
Cor da superficie: gris escuro, gris claro, negro, personalizado, etc
Contain Accessories : Complete finished street lights
Características do produto
- O corpo de aluminio está feito de fundición a presión de aluminio ADC12, a superficie tratada con pintura en spray para evitar a corrosión e a persistencia da cor.
- Deseño de aletas de disipador de calor de gran área para unha teoría rápida a favor da convección entre o aire frío e quente, para manter a boa disipación da calor das lámpadas e aumentar a luz durante toda a vida útil.
- Caixa de subministración de enerxía para manter a lámpada completa e unificada.
- Deseño de ventilación para evitar o po e evitar a auga estancada para lograr a luz de longa duración.

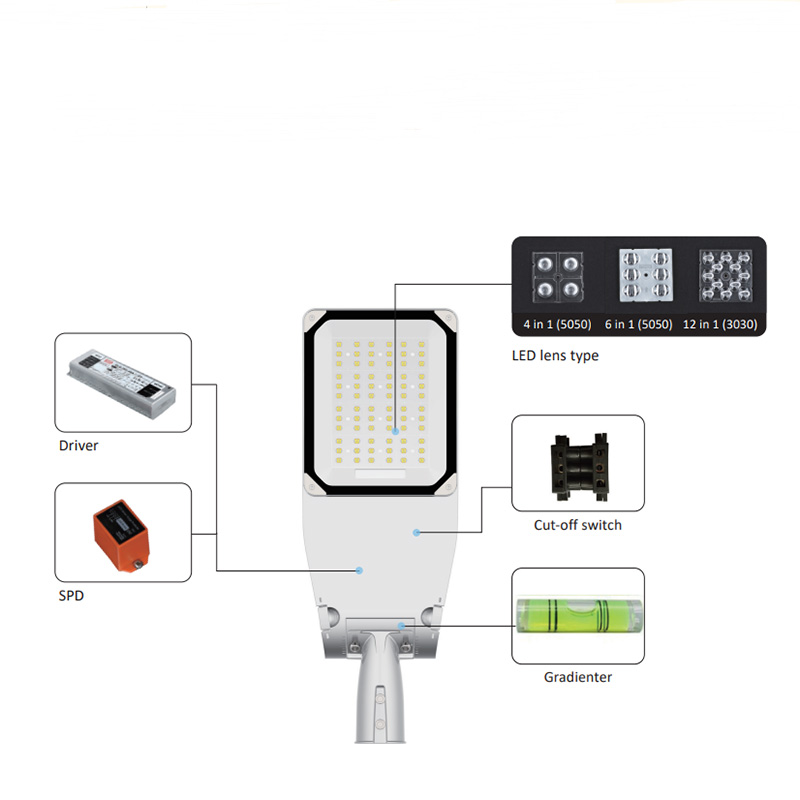

Product Details

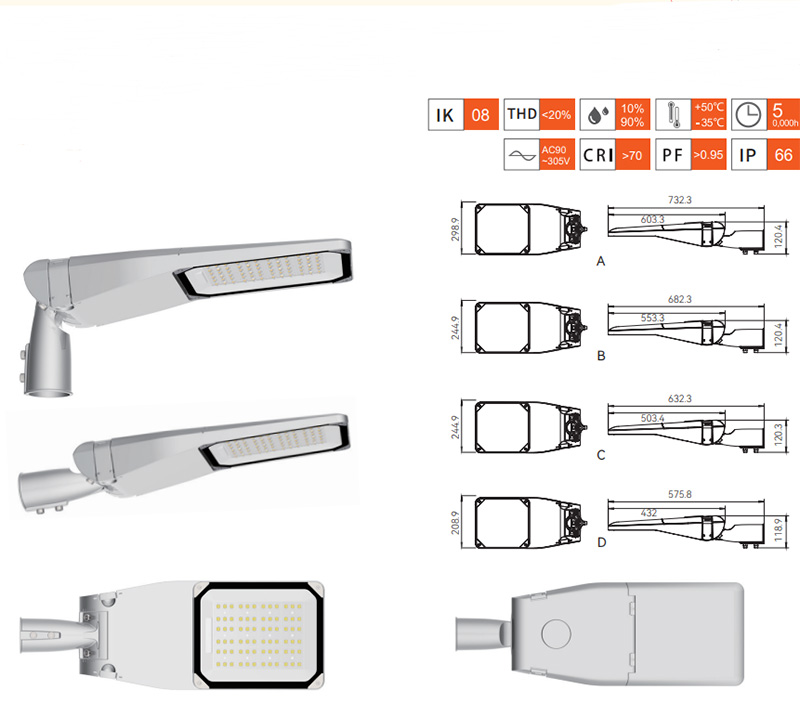

Product Size Chart
Especificación e dimensión
| Model | EK-LD2301A | EK-LD2301B | EK-LD2301C | EK-LD2301D |
| Potencia | 150-240W | 100W-150W | 60W-100W | 20W-60W |
| Average Lumen | around 120 LM/W | around 120 LM/W | around 120 LM/W | around 120 LM/W |
| Chip Brand | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN |
| Driver Brand | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics |
| Power Factor | > 0,95 | > 0,95 | > 0,95 | > 0,95 |
| Voltage Range | 90V-305V | 90V-305V | 90V-305V | 90V-305V |
| Surge Protection(SPD) | 10KV/20KV | 10KV/20KV | 10KV/20KV | 10KV/20KV |
| Insulation Class | Class I / II | Class I / II | Class I / II | Class I / II |
| CCT. | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| CRI. | >70 | >70 | >70 | >70 |
| Working Temperature | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) |
| Clase IP | IP66 | IP66 | IP66 | IP66 |
| IK Class | ≥IK08 | ≥IK08 | ≥IK08 | ≥IK08 |
| Lifetime (Hours) | >50000 hours | >50000 hours | >50000 hours | >50000 hours |
| Material | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium |
| Photocell base | With | With | With | With |
| Installation Spigot | 60/50mm | 60/50mm | 60/50mm | 60/50mm |
New Arrival 180W Street Led Manufacturer Outdoor Lighting Waterproof Aluminum LED Street Light
Shenzhen EKI Lighting Industrial Co.,Ltd. é o fabricante de carcasas de luz LED de fundición a presión de aluminio cos distintos deseños e tecnoloxías desenvolvidas.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED Highbay Heatsink, LED Empty Casting aluminum light housing.
